Step Spacers
| Description | Uniball/Heim Size | Shoulder | Bolt Size | Stack Height |
|---|---|---|---|---|

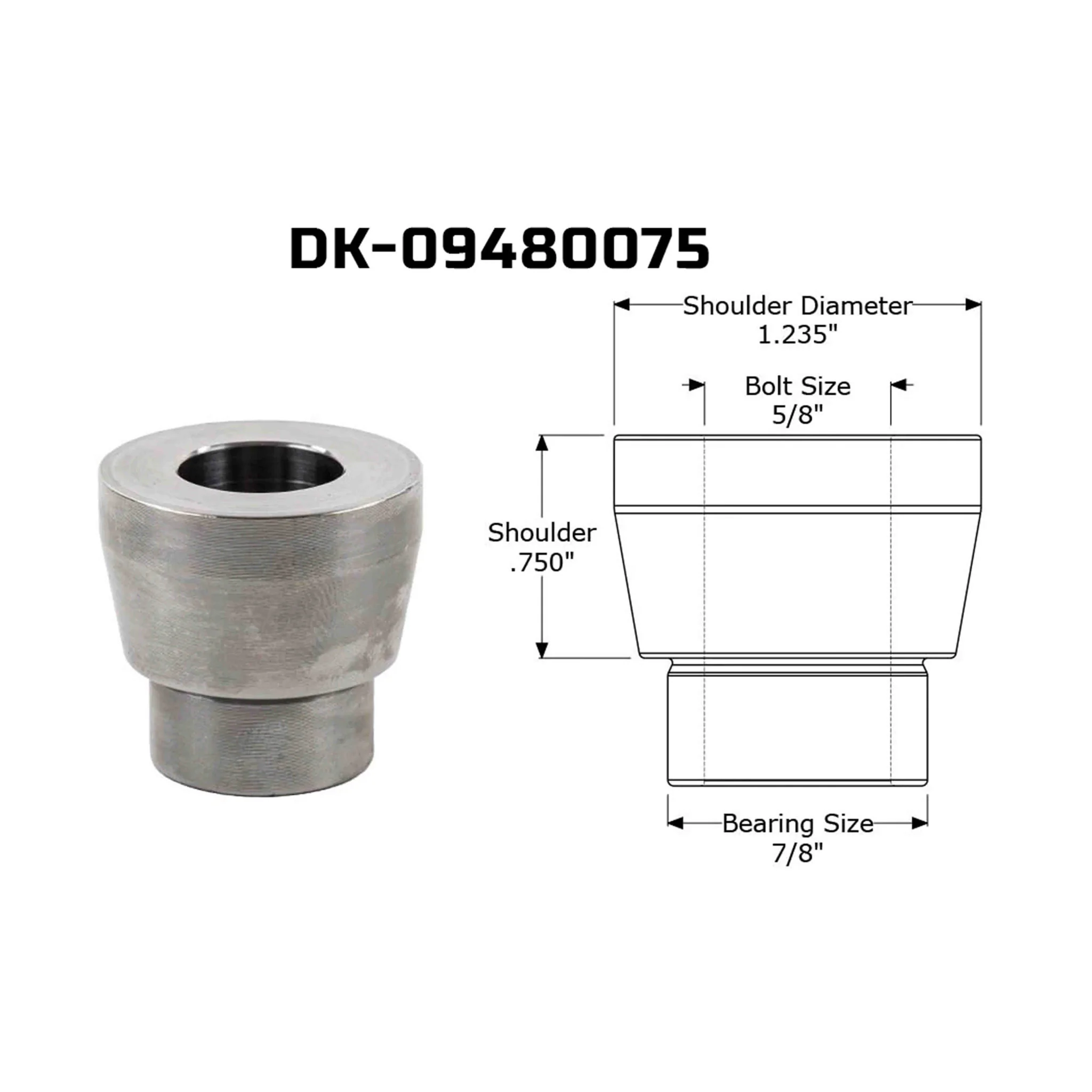

| 7/8" OD x 5/8" ID | 7/8" | .750" | 5/8" | 2.375 |

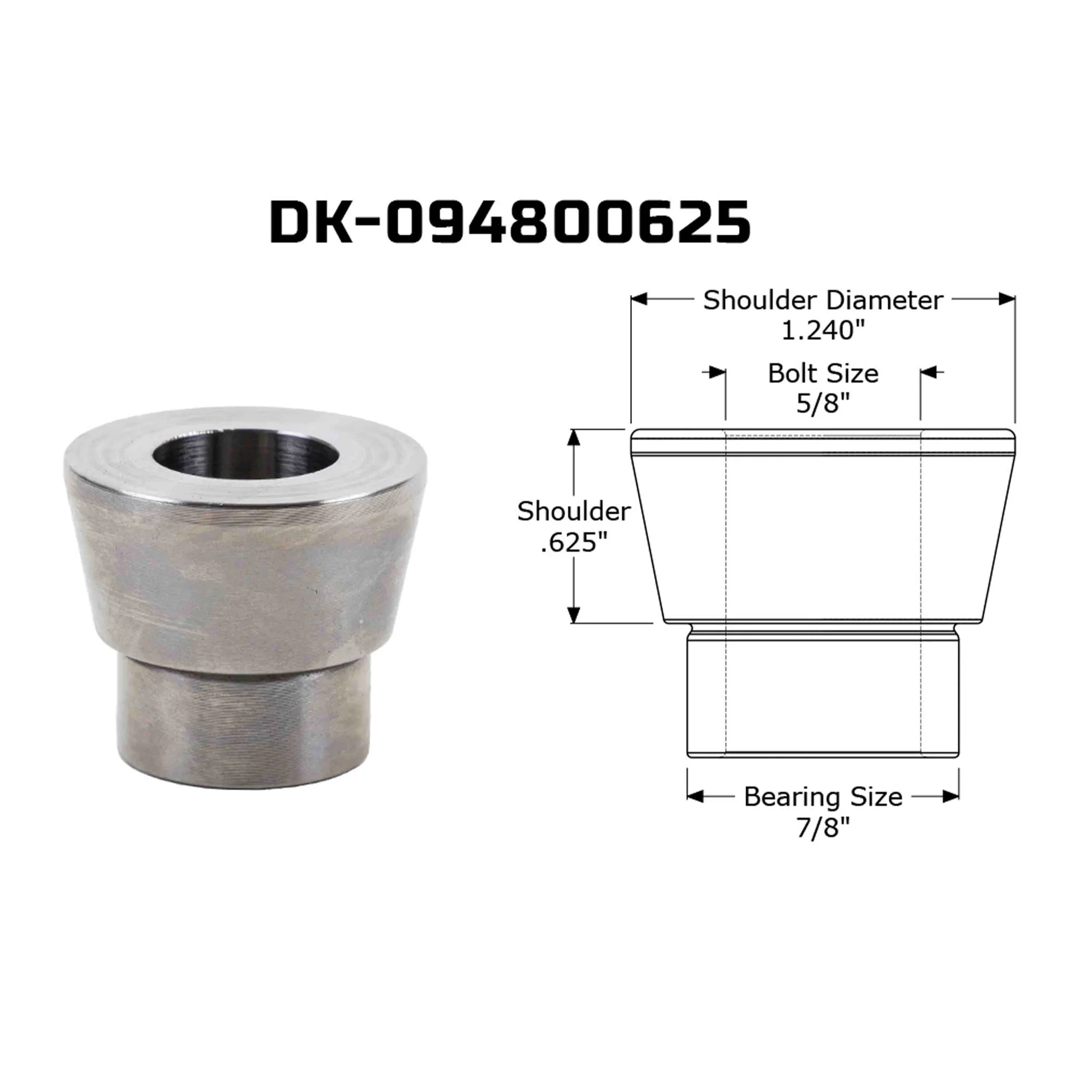

| 7/8" OD x 5/8" ID | 7/8" | .625" | 5/8" | 2.125" |

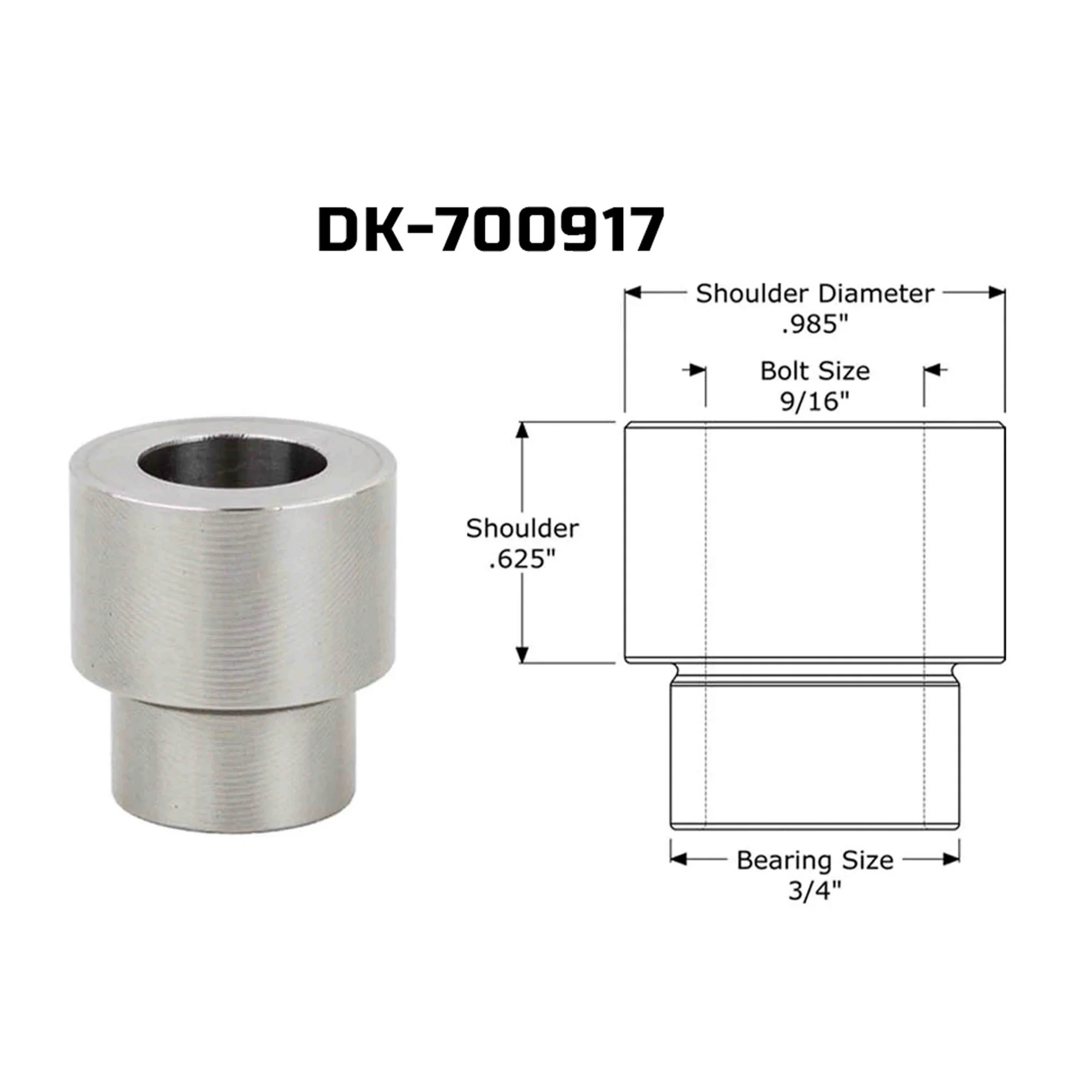

| 3/4" OD x 9/16" ID | 3/4" | .625" | 9/16" | 2.125" |

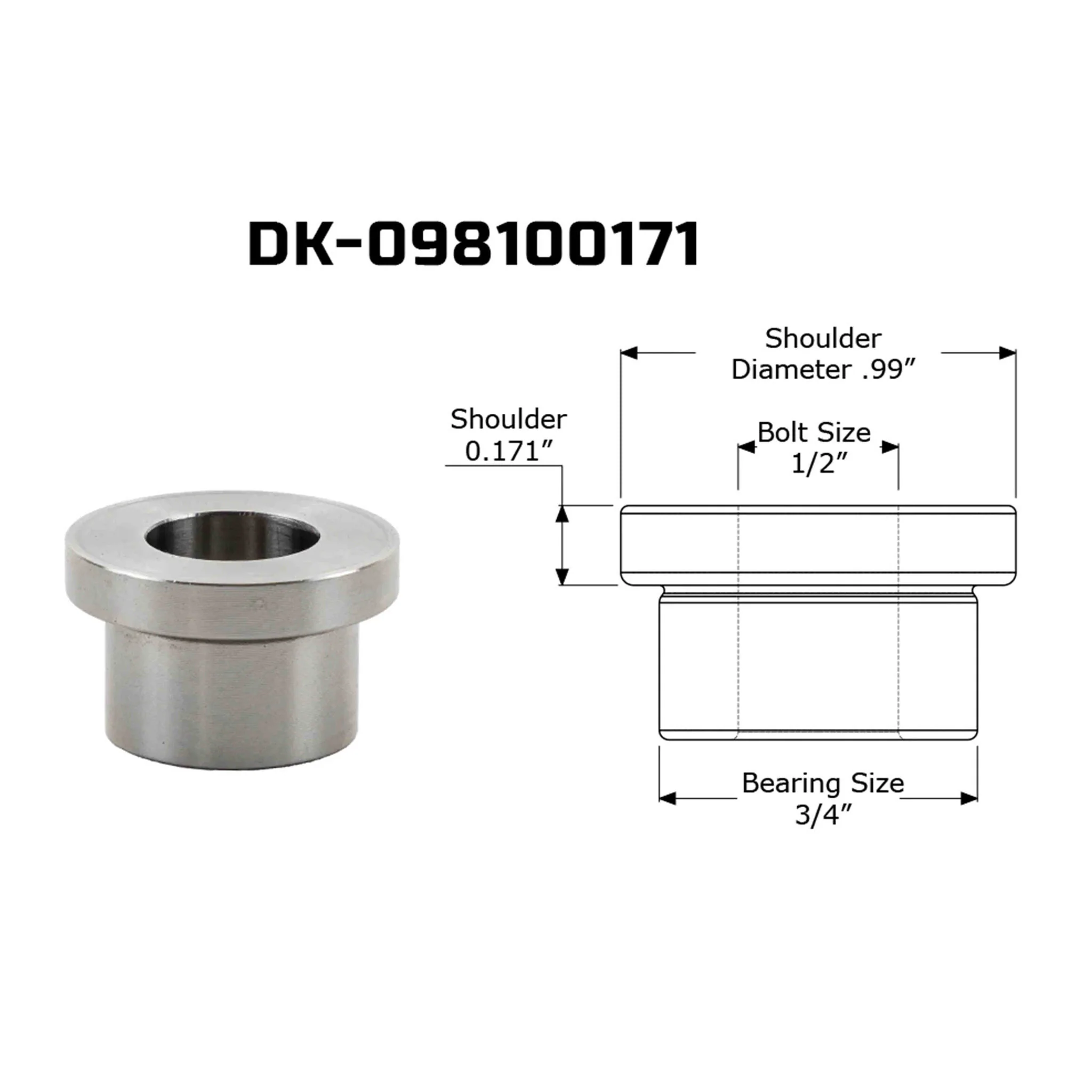

| 3/4" OD x 1/2" ID | 3/4" | .171" | 1/2" | 1.217" |
| 3/4" OD x .563" ID | 3/4" | .813" | .563" | 2.5" |
| 1" OD x 5/8" ID | 1" | .625" | 5/8" | 2.625" |
| 1" OD x 3/4" ID | 1" | .937" | 3/4" | 3.250" |
| 1" OD x 3/4" ID | 1" | .625" | 3/4" | 2.625" |
| 1" OD x 1/2" ID | 1" | .250" | 1/2" | 1.875" |
| 1" OD x 5/8" ID | 1" | .685" | 5/8" | 2.745" |

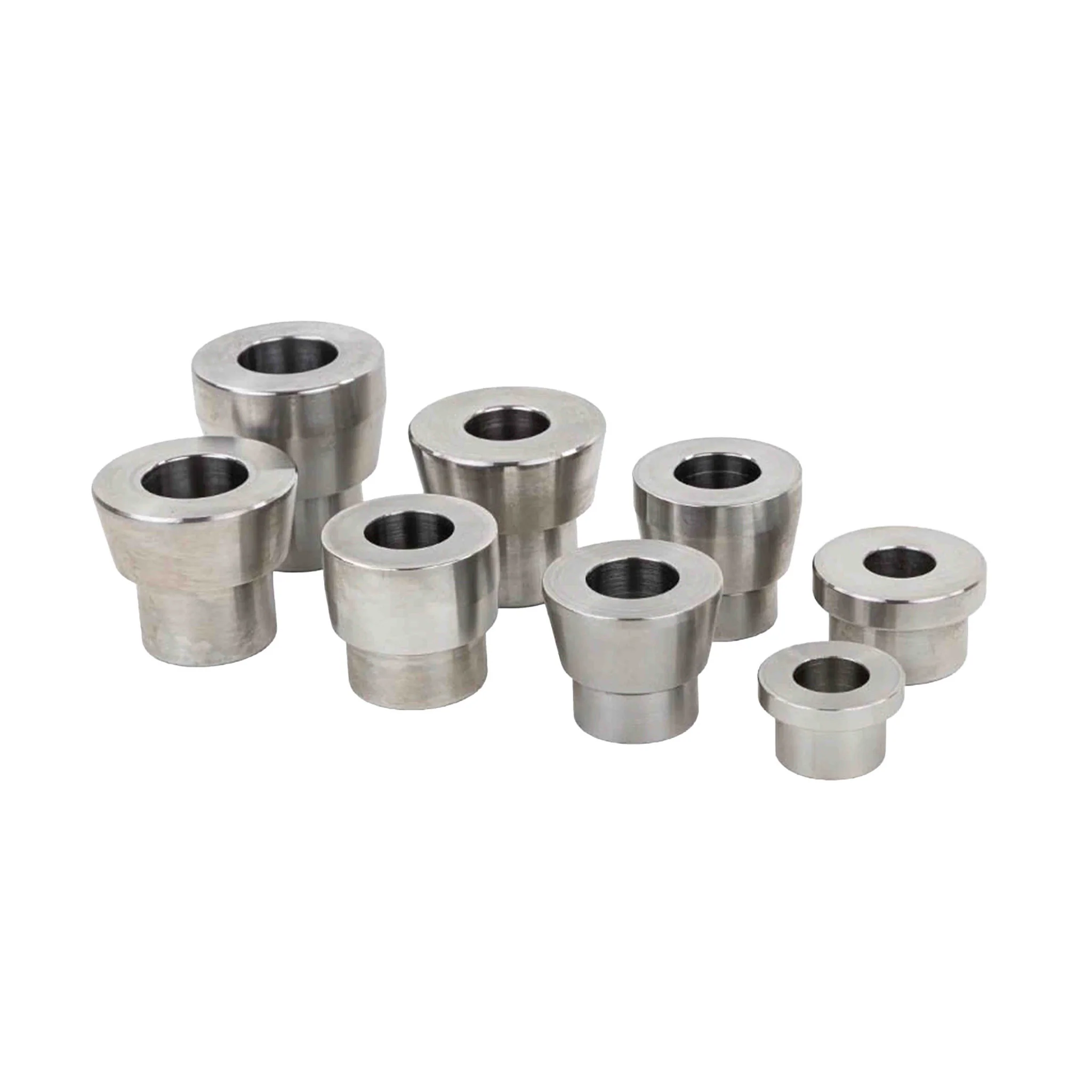

The Dirt King high misalignment spacers are precision machined from heat treated 17-4 stainless steel.
Sold individually.
