HomeStore

Shock Relocation Kit

Product image 1
1 / 7
+2

Shock Relocation Kit

 Description

Introducing the Dirt King Rear Shock Relocation Kit for the 2005-2023 Tacoma. This kit is engineered to maximize rear suspension travel by increasing shock stroke by 50%. Shocks mounted in the factory location typically measure 2.5" x 8",  the Dirt King relocation kit is designed to accommodate for 2.5" x 12" shocks. This allows for significantly improved vehicle articulation, increasing down travel without sacrificing up travel. The kit comes complete with 3/16" lower shock tabs and all the necessary hardware for a straightforward installation. For optimal performance, we recommend pairing this kit with aftermarket leaf springs and the Dirt King Shackle and Hanger Kit to fully unleash your vehicle’s potential.

 Specifications

  • Amount of Lift: 0-3” (based off leaf spring spec)
  • Track Width: Requires 1.5" wheel spacers
  • Maximum Backspacing: 4.5"

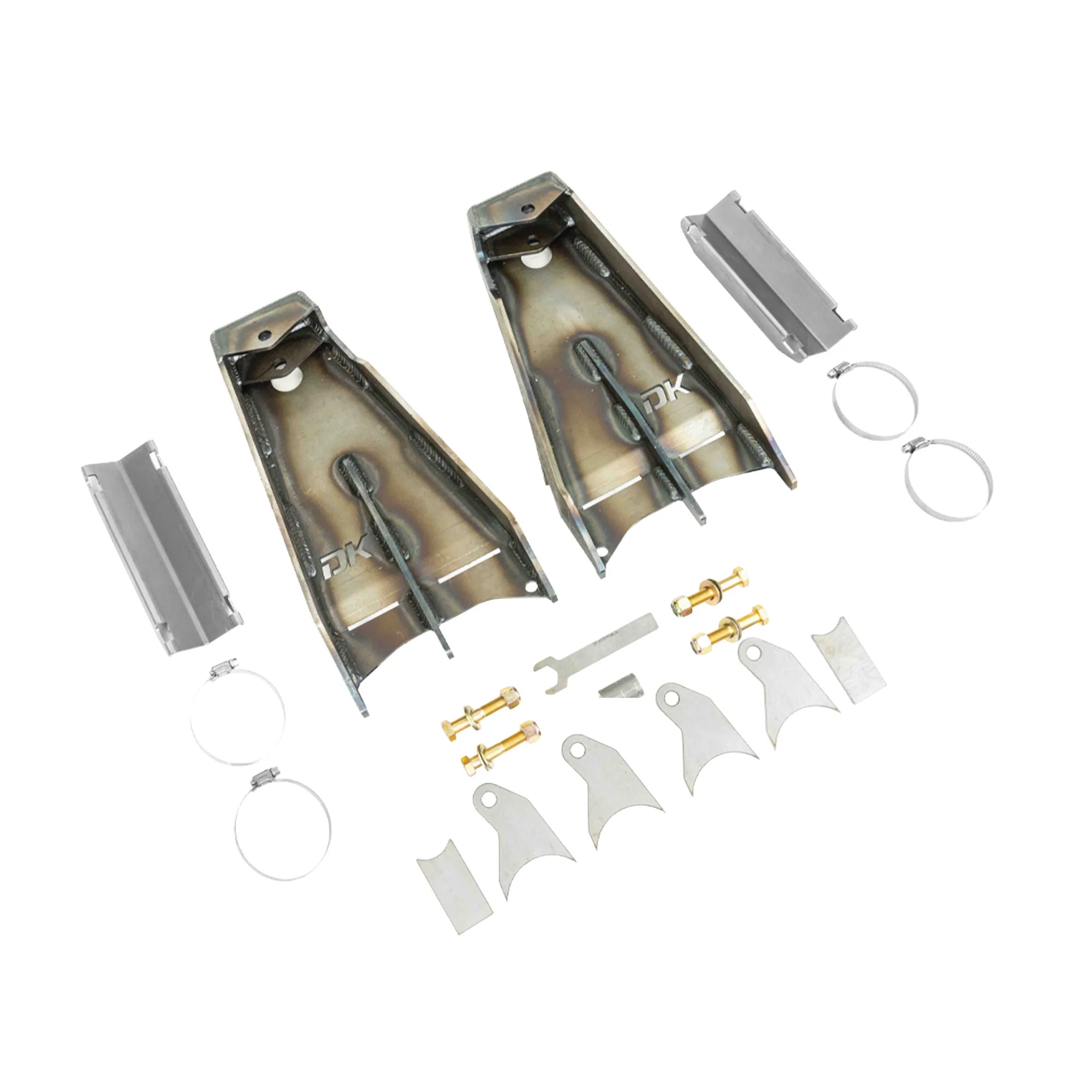

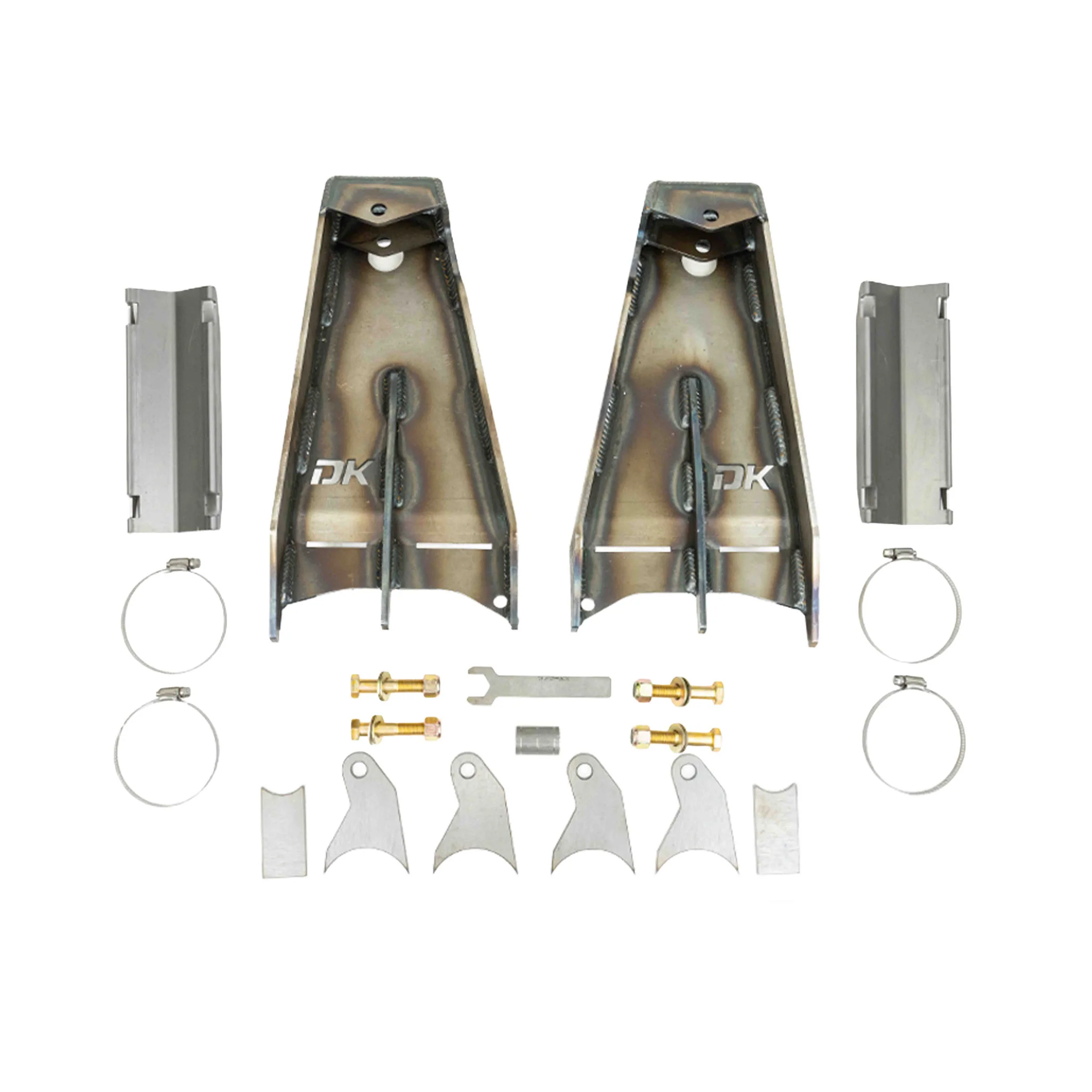

 What's Included

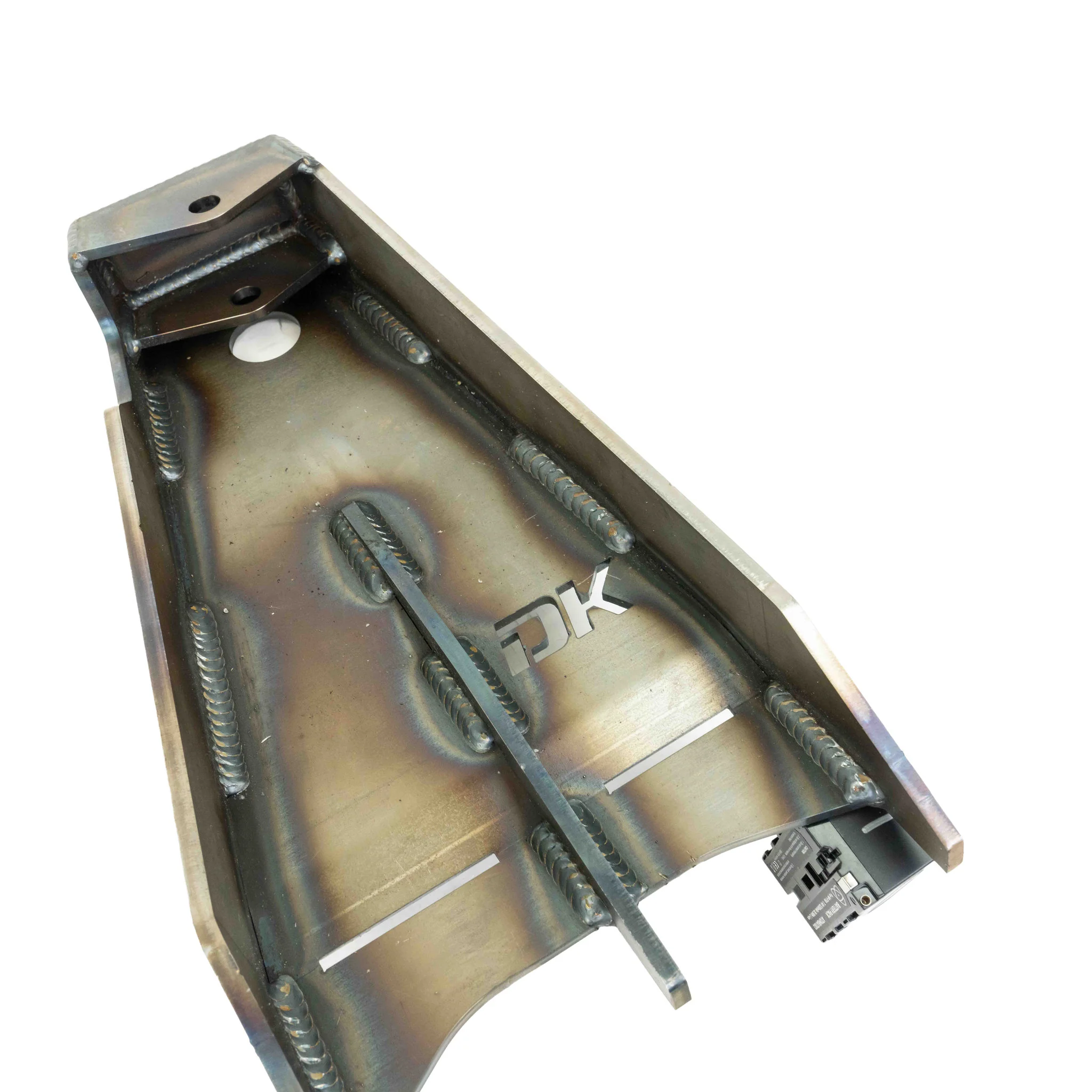

  • Rear shock mounts

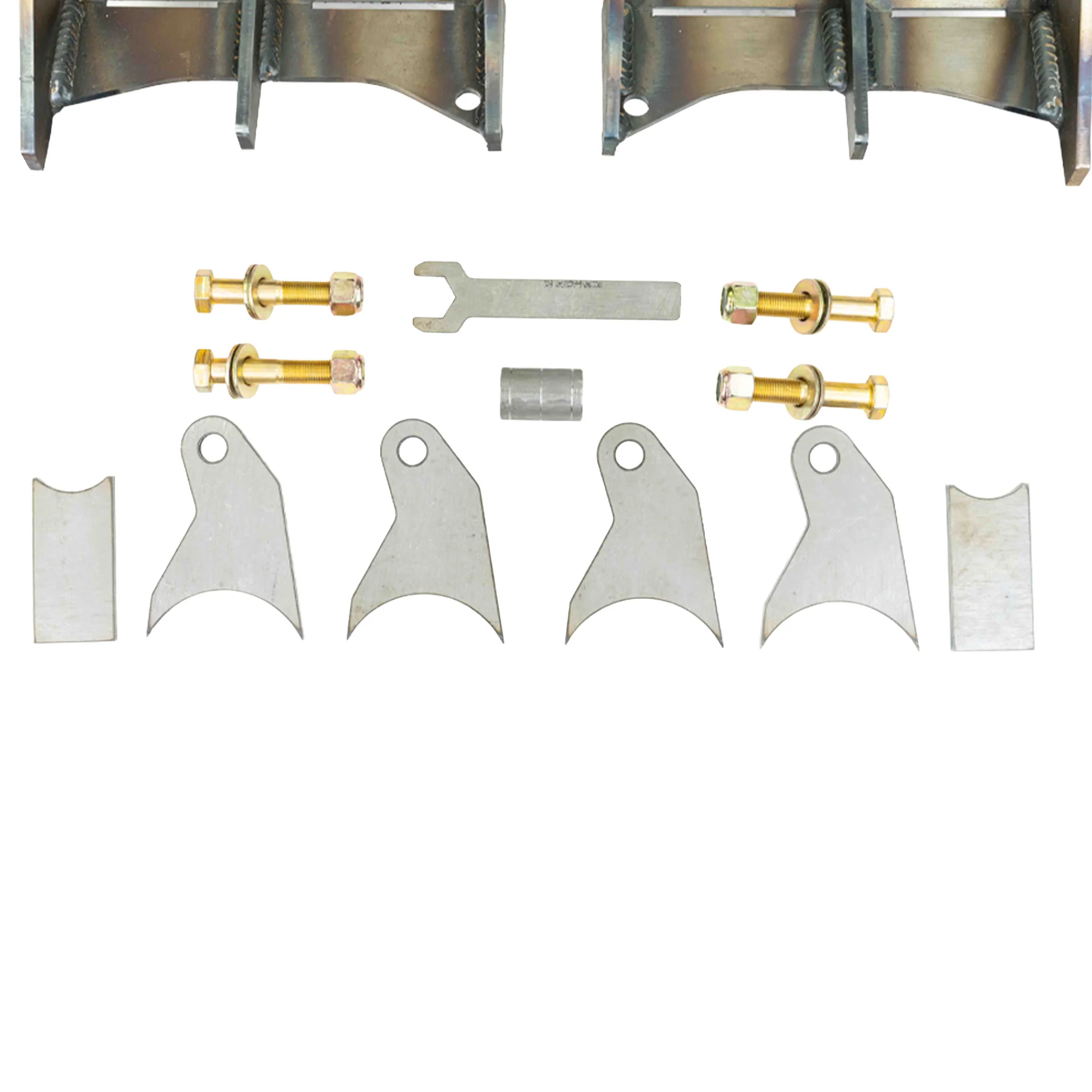

  • Shock tabs
  • Shock tab gussets
  • Low profile wrench
  • Reservoir mounts
  • Grade 8 mounting hardware
  • Dirt King sticker pack
  • Installation Instructions

  Features

  • CAD designed
  • Professionally MIG welded
  • Proudly made in the USA

  Instructions


Instructions

  Compatibility

2005-2023 Toyota Tacoma 2WD / 4WD 6 lug

*Compatible with smooth body shocks. Not compatible with bypass shocks.

 Description

Introducing the Dirt King Rear Shock Relocation Kit for the 2005-2023 Tacoma. This kit is engineered to maximize rear suspension travel by increasing shock stroke by 50%. Shocks mounted in the factory location typically measure 2.5" x 8",  the Dirt King relocation kit is designed to accommodate for 2.5" x 12" shocks. This allows for significantly improved vehicle articulation, increasing down travel without sacrificing up travel. The kit comes complete with 3/16" lower shock tabs and all the necessary hardware for a straightforward installation. For optimal performance, we recommend pairing this kit with aftermarket leaf springs and the Dirt King Shackle and Hanger Kit to fully unleash your vehicle’s potential.

 Specifications

  • Amount of Lift: 0-3” (based off leaf spring spec)
  • Track Width: Requires 1.5" wheel spacers
  • Maximum Backspacing: 4.5"

 What's Included

  • Rear shock mounts
  • Shock tabs
  • Shock tab gussets
  • Low profile wrench
  • Reservoir mounts
  • Grade 8 mounting hardware
  • Dirt King sticker pack
  • Installation Instructions

  Features

  • CAD designed
  • Professionally MIG welded
  • Proudly made in the USA

  Instructions


Instructions

  Compatibility

2005-2023 Toyota Tacoma 2WD / 4WD 6 lug

*Compatible with smooth body shocks. Not compatible with bypass shocks.
