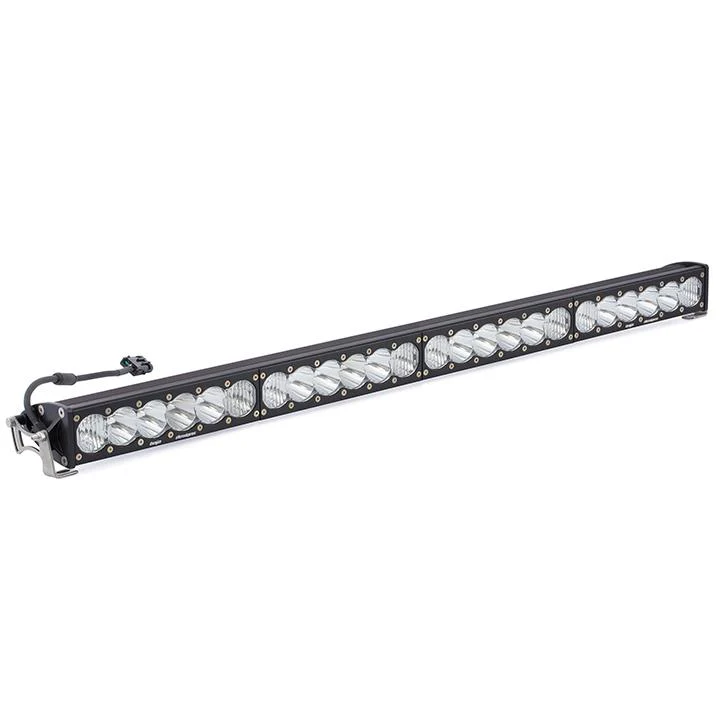

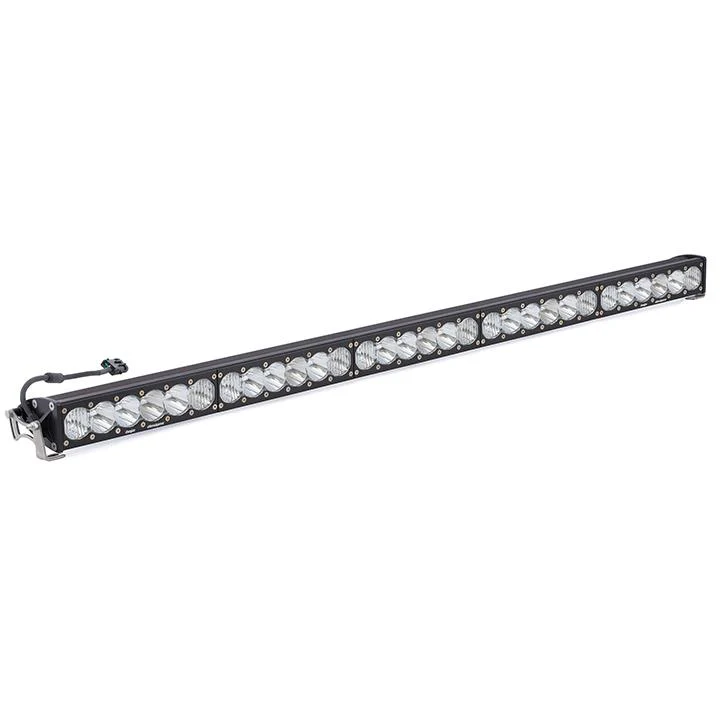

ONX6+ LED Light Bars | Clear | Straight (Sizes: 10"-50")
 Description
The brightest just got up to 69% brighter than our previous generation. The OnX6 + LED light bar also integrates Baja Designs’ trademarked High Speed Spot™ reflector, the same one used by our Team Enlightened racers, to give you the guaranteed furthest projecting LED Light Bar on the planet. In addition, the OnX6 + LED light bar adopts industry standard sizing and is now compatible with aftermarket mounting systems. An industry first 30 Day Satisfaction Guarantee & Limited Lifetime Warranty is included for the ultimate in purchase protection.Â
This bar is equipped with BMT – Battery Management Technology
 Specifications
| Width | Lumens | Wattage/Amps | Dimensions |
|---|---|---|---|
| 10" | (High) 12,460 (Low) 9,230 Utilizing 6 LEDs | (High) 108W / 8.4A (Low) 80W / 5.7A | 10" x 4.29" x 2.69" |
| 20" | (High) 24,920 (Low) 18,460 Utilizing 12 Cree LEDs | (High) 216W / 16.6A (Low) 160W / 12.0AÂ | 20" x 4.29" x 2.69" |
| 30" | (High) 32,070 (Low) 25,610 Utilizing 18 Cree LEDs | (High) 278W / 21.7A (Low) 222W / 17.1AÂ | 30" x 4.29" x 2.69" |
| 40" | (High) 39,220 (Low) 32,760 Utilizing 24 Cree LEDs | (High) 340W / 26.8A (Low) 284W / 22.4AÂ | 40" x 4.29" x 2.69" |
| 50" | (High) 39,220 (Low) 32,760 Utilizing 30 Cree LEDs | 355W / 28.2A | 50" x 4.29" x 2.69" |
- LED Life Expectancy:49,930 Hours
- Front Lens:Hard Coated Polycarbonate
- Housing:Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
- Bezel:Billet Machined Aluminum
- Hardware & Bracket Material:Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof up to 9ft & Pressure Washable)
- IK10 Compliant (Mechanical Impact Testing)
 What's Included
- OnX6+ LED Light Bar
- Mounting Brackets
- Hi-Low Dongle
*Please note that this light does NOT include a harness and the applicable harness to this light is 640119
 Features
- Elimination Of Flickering at Low Voltage
- Added Protection to Vehicle Wiring and Systems
- Protection from Dangerous Current Spikes
- uService® – Replaceable Lenses And Optics
- ClearView® – All The Light, Right Where You Need It.
- MoistureBlock™ – Waterproof, Rain Proof, Submersible
- CopperDrive® – Only LED Driven At 100%
- 5000K Daylight – Less Driver Fatigue, Natural Color
 Beam Patterns
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (42°) and the spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Wide Driving: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2) (Also available in amber)
High Speed Spot: A longer and narrower 6° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
